Angle Blast Nozzles - Tungsten

Use our angle nozzles to get in those hard to reach corners and short pipes. Marco offers single outlet and triple outlet nozzles which shoot out the abrasive at 45 degree angles.

FEATURES:

  • ideal for inside of pipes, behind flanges & bridge lattice
  • outlet is 45° angle
  • available in single or triple-outlet
  • 1-1/4" standard threads with tungsten carbide liner

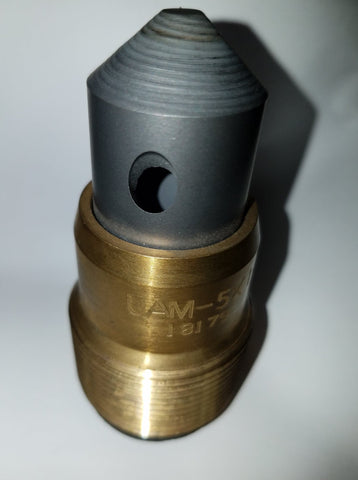

 Model: UAM-5X1/50 uses gasket NW-1514

Inlet inch/mm Bore inch/mm Length inch/mm Outlet
25/32 19.85 5/16" 7.94 3" 76.2 1

     Model: UAM-5X1/A90 uses gasket NW-1514

    Inlet inch/mm Bore inch/mm Length inch/mm Outlet
    25/32" 19.85 5/16" 8.00 3.2" 81.2 1

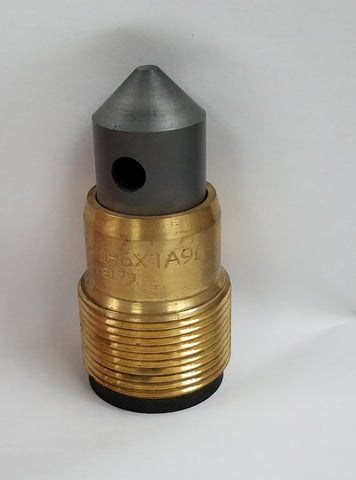

     Model: UAM-6X1/A90 uses gasket NW-1514

    Inlet inch/mm Bore inch/mm Length inch/mm Outlet
    25/32" 20 3/8" 9.53 3.2" 81.2 1

    PRODUCT DESCRIPTION

    An abrasive blasting nozzle is designed to accelerate and direct an air and abrasive mixture to the work surface for increased production. Abrasive blasting nozzles are available in a variety of nozzle styles, liner materials, and jacket materials. The nozzle style is determined by the application. The liner material is determined by the abrasive used. The jacket material protects the liner from external damage. Typical applications include blast rooms, blast yards, bridges, offshore platforms, oil refineries, pipelines, rail car shops, shipyards, storage tanks, and water towers.
